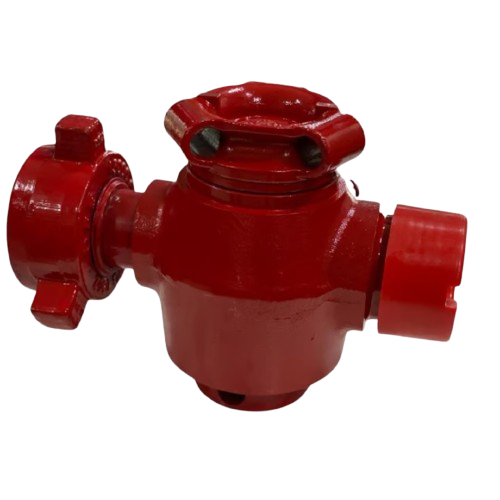

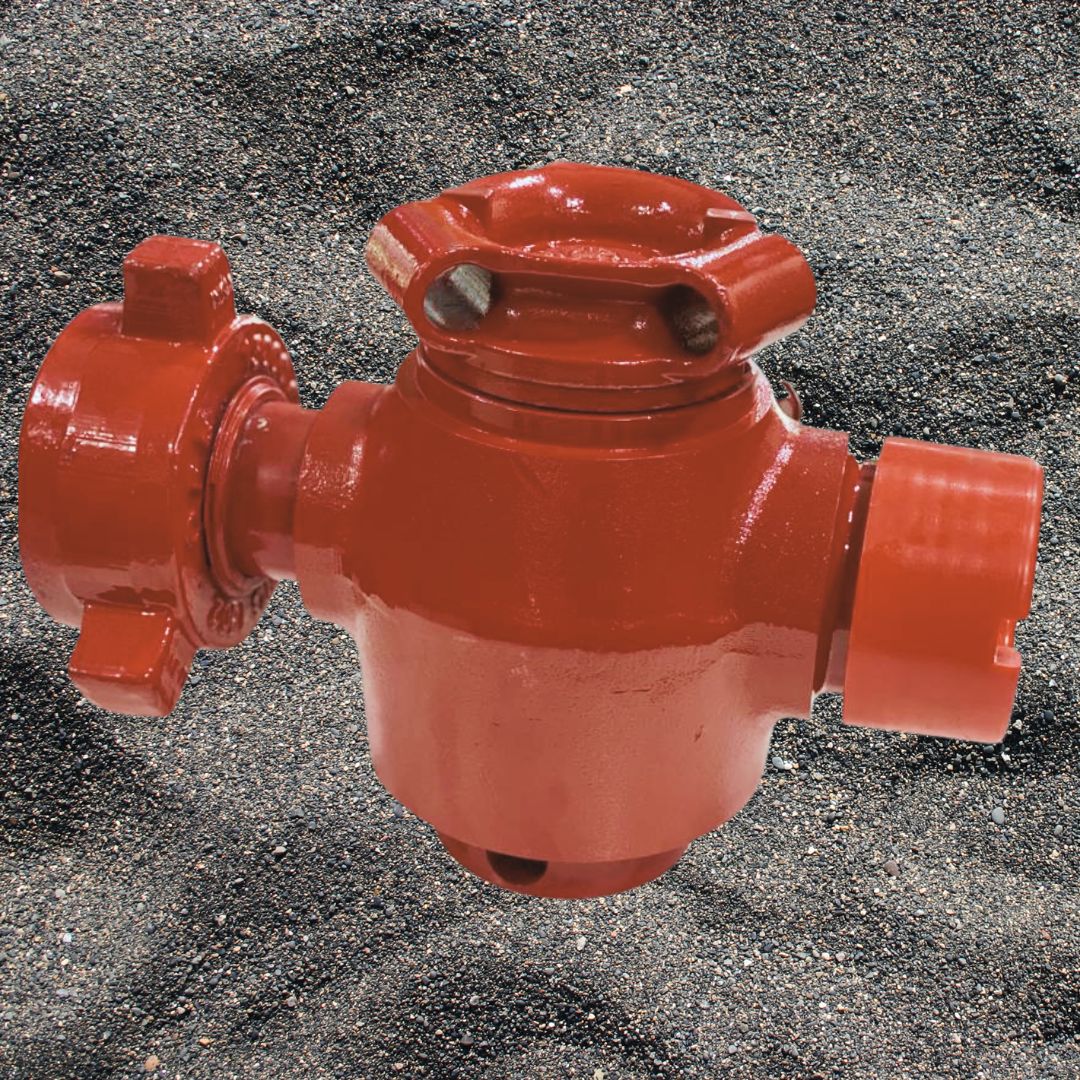

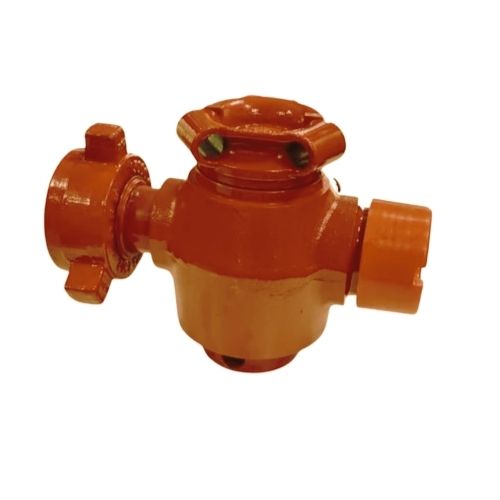

Plug valves- Low torque valve and repair kits provide by ARES, Forging can be interchanged with the same type of valves of SPM, with size range from 1″ – 3″ and pressure ranging from 6,000psi – 20,000psi,
Application:
● Oil and Gas lines
● Abrasive Drilling Mud
● Wellheads
● Crude Oil and Sour Gas, Mud
● Manifolds and Pipelines
● Water Flood Lines
● Well Treating Chemicals
● Production and flushing
Features:
● Easy repairing and maintenance can be performed inline, no need special tools.
● Low operating torque, easy and flexible operation
● Plug valves which treated with special coating process, has excellent performance in wear and corrosion resistances.
● Apparent open/close identification and position limiting mechanism are provided.
● Special grease for lubricating and sealing.
Available in sizes 3/4″ through 3 ” Short Radius & Long Radius up to 15,000 PSI non-stock cold working pressure, TOP Swivel Joints offer the following features.
· Minimum flow restriction
· Heavy duty hex head style ball loading plug
· Grease retainer ring (ensures clean ball race)
· Standard packing units (operating temperature to 225 °F)
· Superior hardened ball races ensure uniform surface hardness and depth for longer life under severe thrust and radial loading
· Standard Swivel Joints are provided with API line pipe threads other end connections are available on request
· Available for standard and sour service
· All sizes are available in 8 styles, for 360 rotations in 1, 2 or 3 planes
ARES Pup Joints includes, Pup Joints (Integral, Threaded & Welded), 2″ to 10″ and pressures from 1000psi to 15000psi.The integral connections made of high strength alloy steel with all heat-treated to enhance load-bearing capacity and lengthen service life.
ARES integral fittings have union ends for easy connection with various cementing or fracturing equipment, and welded end connectors designed as per API Spec 6A.
ARES integral fittings are used for connection between different sizes or thread pipes.
Various models of API integral connectors for normal temperature, low temperature and sour gas (H2S) conditions can be provided.
The API integral connectors for sour gas (H2S) environments are made to NACE MR0175.
