A BOP Control Unit (Blowout Preventer Control Unit) is a system used in oil and gas drilling to control the blowout preventer (BOP), which is a critical safety device that prevents uncontrolled well flow or blowouts.

Functions of a BOP Control Unit

• Hydraulic Power Supply: Provides the hydraulic pressure needed to operate the BOP’s rams, annular preventers, and valves.

• Remote & Manual Control: Allows operators to open and close the BOP remotely or manually in case of emergencies.

• Monitoring & Alarms: Monitors pressure levels, fluid status, and system functionality.

• Backup Safety Mechanisms: Includes redundant systems like accumulator bottles to ensure operation even if primary power is lost.

Types of BOP Control Units

1. Surface BOP Control Unit: Used in land and shallow-water drilling, mounted on the rig.

2. Subsea BOP Control Unit: Used in deepwater drilling, typically controlled via an Electro-Hydraulic Multiplex (MUX) System.

Key Components

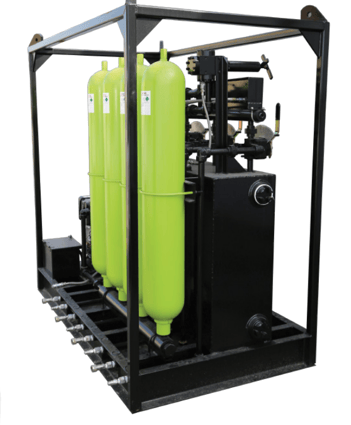

• Accumulator Bottles: Store pressurized hydraulic fluid for rapid BOP activation.

• Hydraulic Pumps: Maintain pressure in the system.

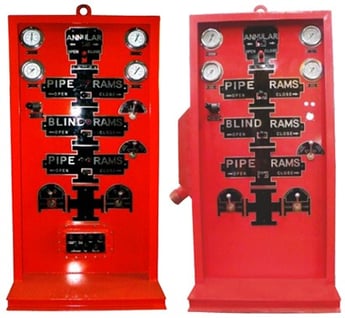

• Control Panels: Located on the rig for manual or remote operation.

• Regulators & Valves: Manage fluid pressure and flow.

• Pilot Lines: Carry hydraulic signals to activate different parts of the BOP stack.

Would you like more details on any specific part, such as operation, maintenance, or troubleshooting?

Here’s an overview of what the BOP Control Unit does:

1. Monitoring and Controlling: The BOP Control Unit is responsible for controlling the BOP's hydraulics and ensuring that it functions correctly when needed. It manages the pressure and flow of fluids to and from the BOP to ensure it seals the well when required.

2. Hydraulic Power: The unit typically consists of hydraulic pumps and control systems that supply the necessary power to activate the BOP's functions, like closing the blowout preventer ram or actuating other valves.

3. Remote Operation: The BOP Control Unit allows for remote operation, meaning that the personnel operating the drilling rig can control the BOP system from a distance, typically from the rig floor or control room, using hydraulic systems, control panels, and other interfaces.

4. Pressure and Fluid Monitoring: The unit continuously monitors the pressure inside the wellbore and in the BOP system to ensure safe operation. If abnormal pressures are detected, the BOP can be activated to seal off the well and prevent a blowout.

5. Emergency Activation: In case of an emergency, the BOP Control Unit can trigger a rapid response to close the BOP and secure the well, helping prevent catastrophic accidents.

Components of the BOP Control Unit:

• Control Panel: The interface where operators can monitor and control the BOP.

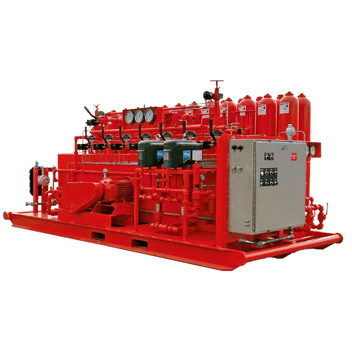

• Hydraulic Power Units: To supply hydraulic pressure to the BOP for valve and ram operation.

• Chokes and Valves: To control the flow of fluids in the system.

• Instrumentation: For pressure and temperature monitoring, as well as ensuring proper operation of the system.

• Emergency Shutdown Systems: For activating a quick response in case of an emergency or malfunction.

The BOP Control Unit is crucial for ensuring safety during drilling operations, helping to mitigate the risk of uncontrolled releases of hydrocarbons.
